CLAMPING CYLINDERS

LSE SERIES

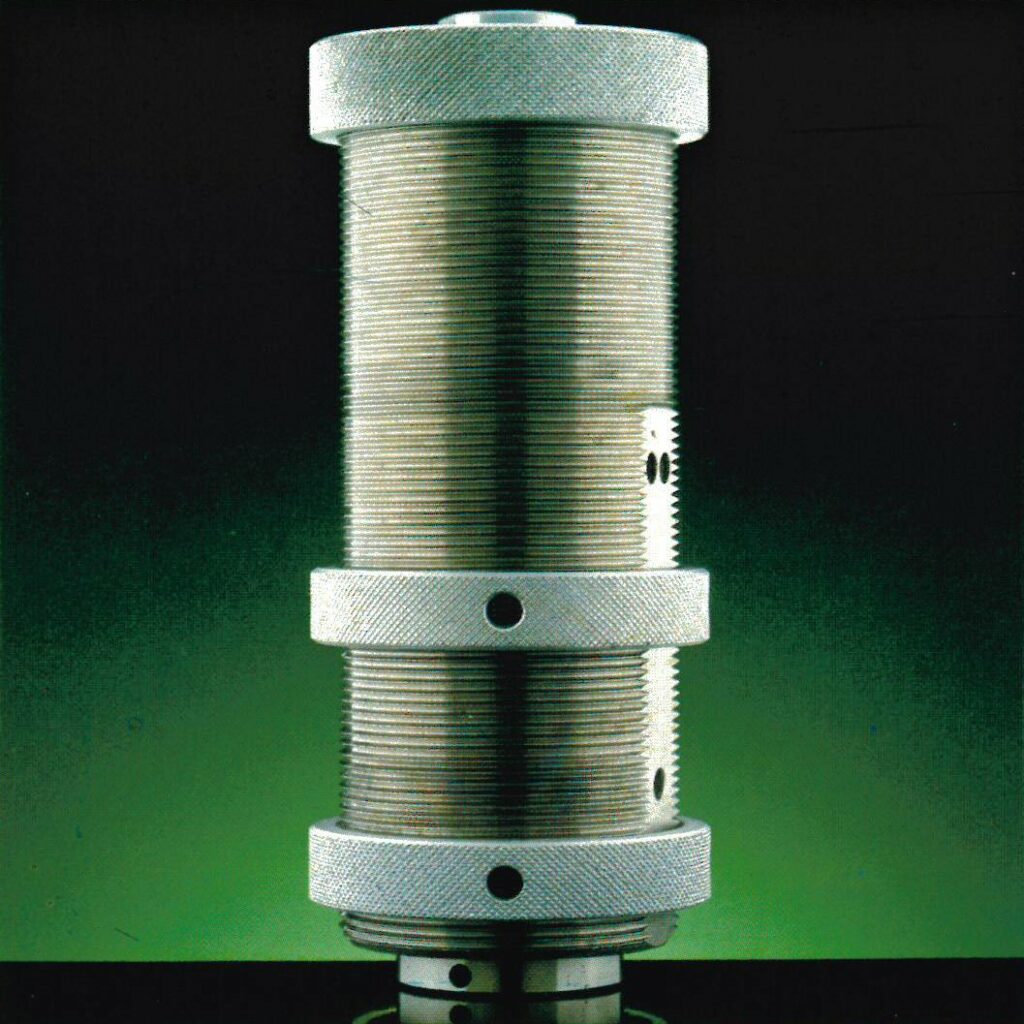

Single-acting hydraulic-pneumatic cylinder.

The LSE clamping cylinder is an air-oil pressure intensifier.

This principle enables high forces to be used in small installations with low air consumption.

Operating temperature: +10° to +80°C

Power supply: filtered and lubricated air.

MATERIALS

Bonnet and rings: zinc-plated steel

Sleeve: nickel-plated steel

Piston: treated steel

Seals : Perbunan

New sale.

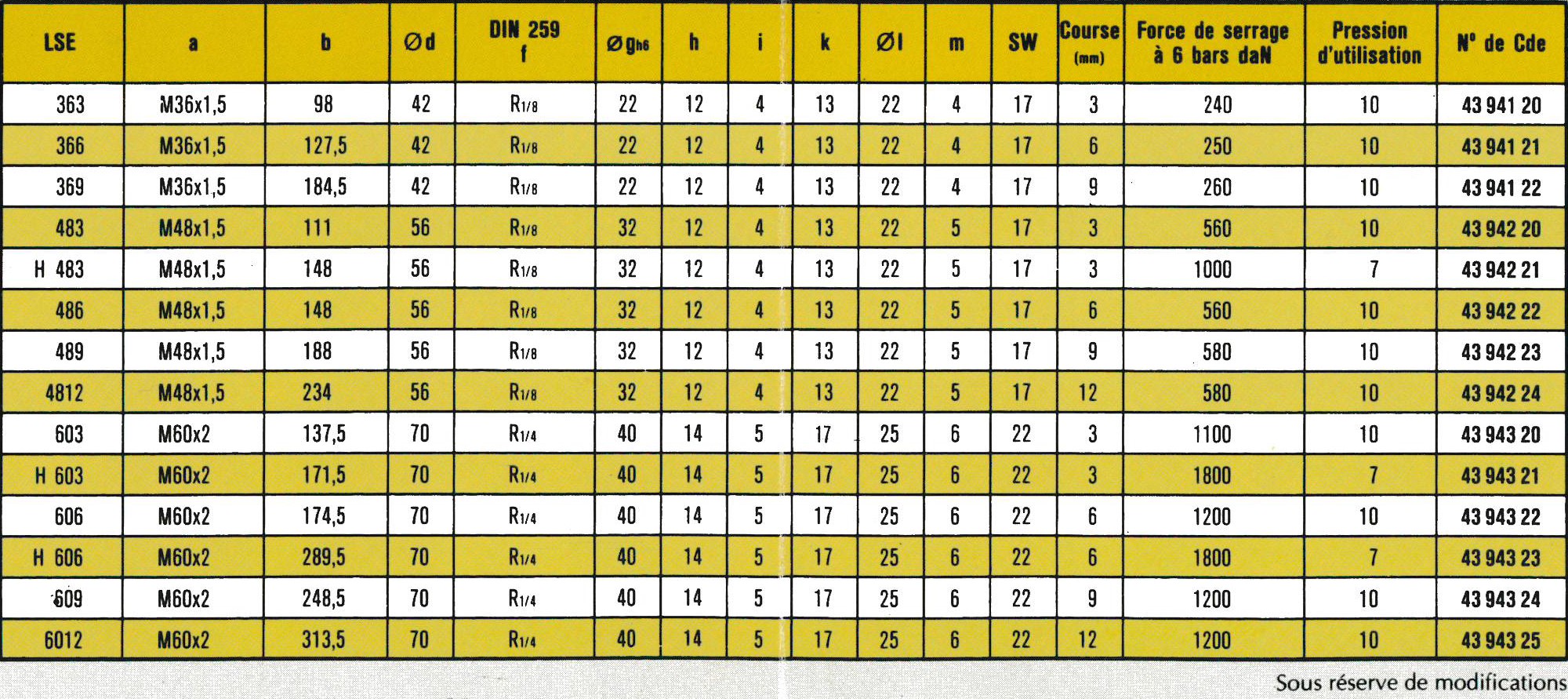

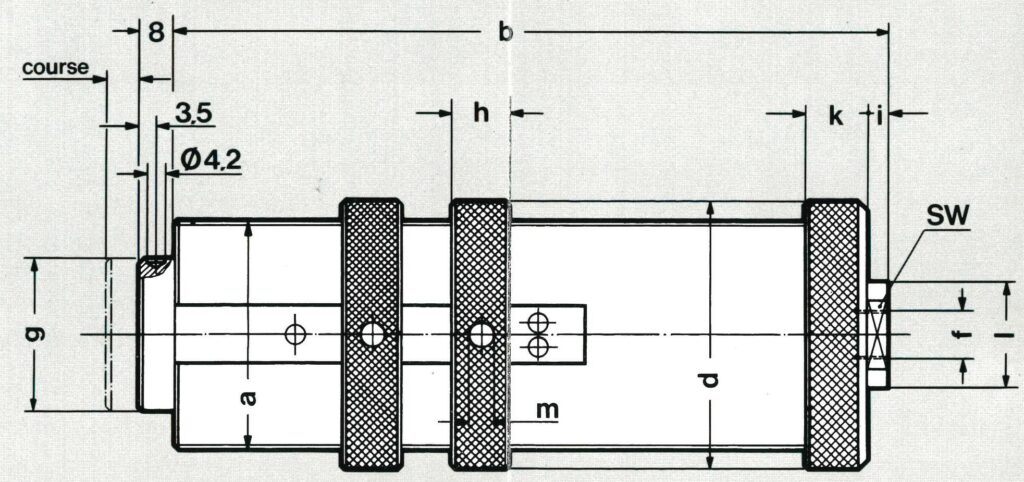

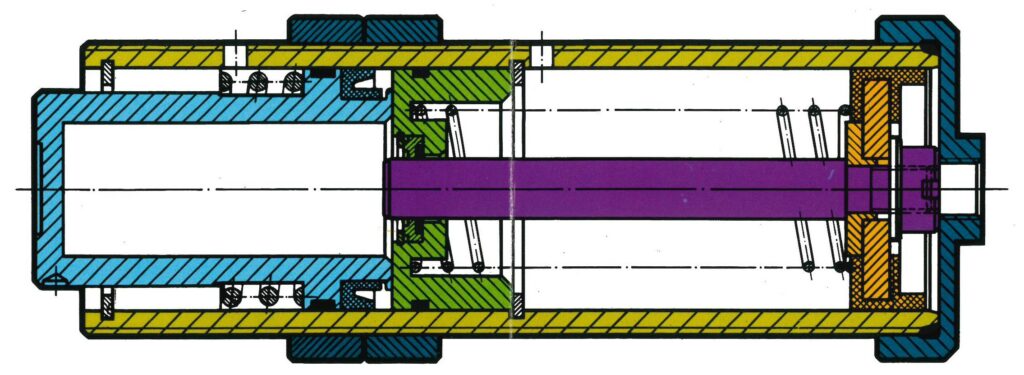

Piston Oil

Piston rod Air

Piston Air

Shirt

Intermediate Ring

Hat

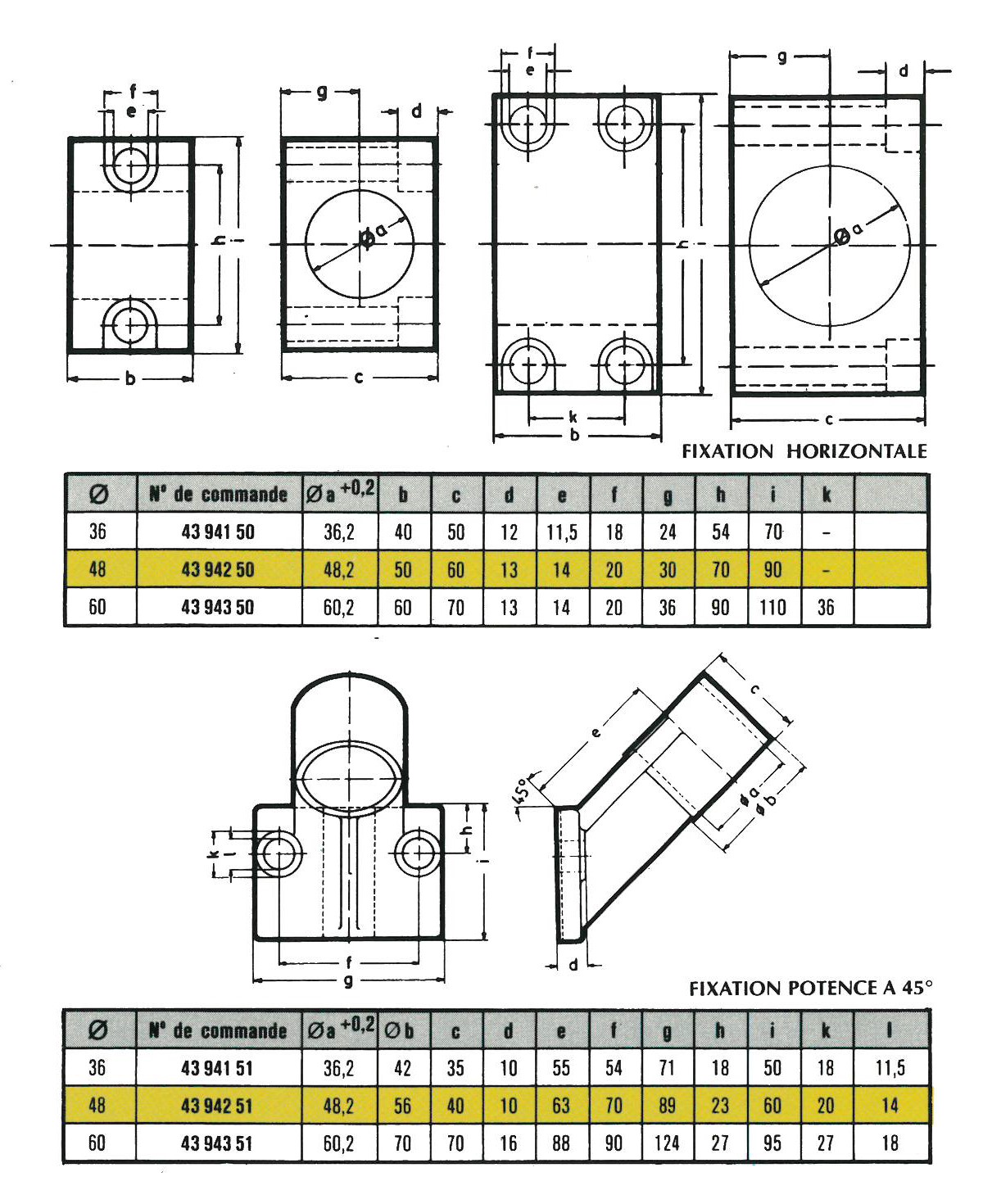

Bindings :

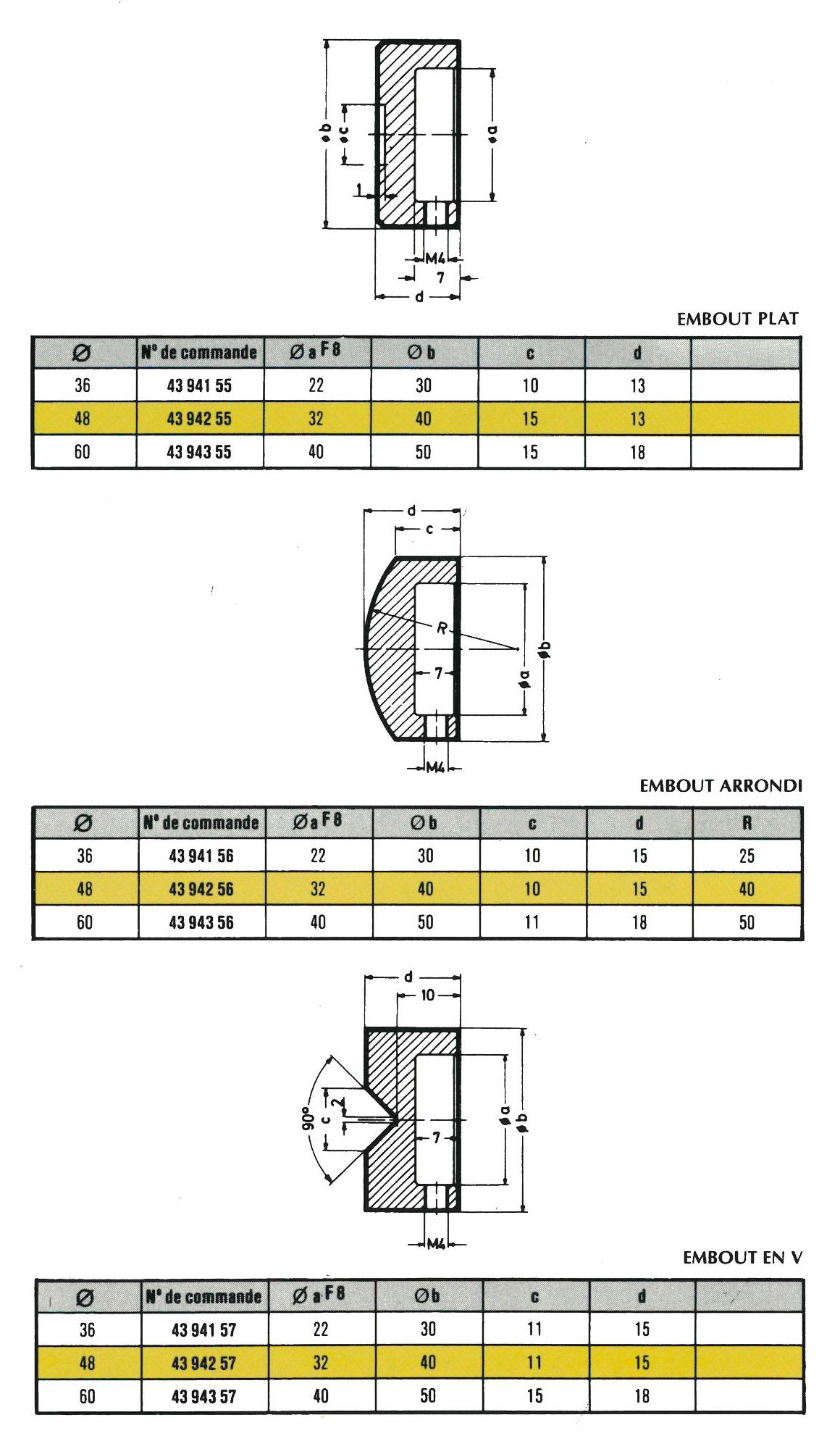

Endcaps :

ASSEMBLY

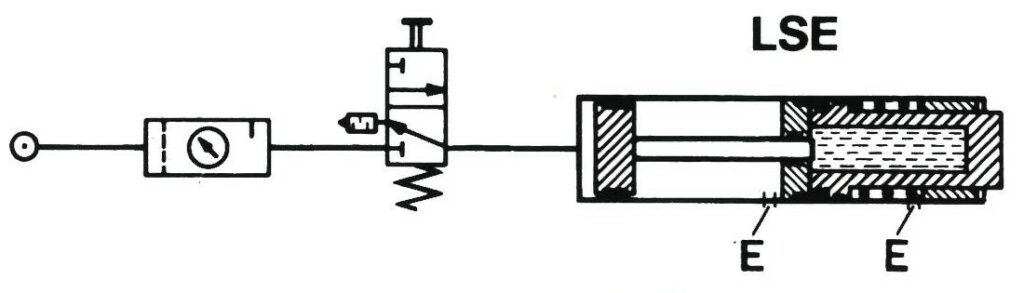

Caution! When installing these cylinders, the exhaust ports E must remain free and no dirt must be able to enter them during operation.

If necessary, suitable covers must be fitted.

These units can be installed in any position, but must be clamped axially. The clamping piston must not be subjected to radial stress.
